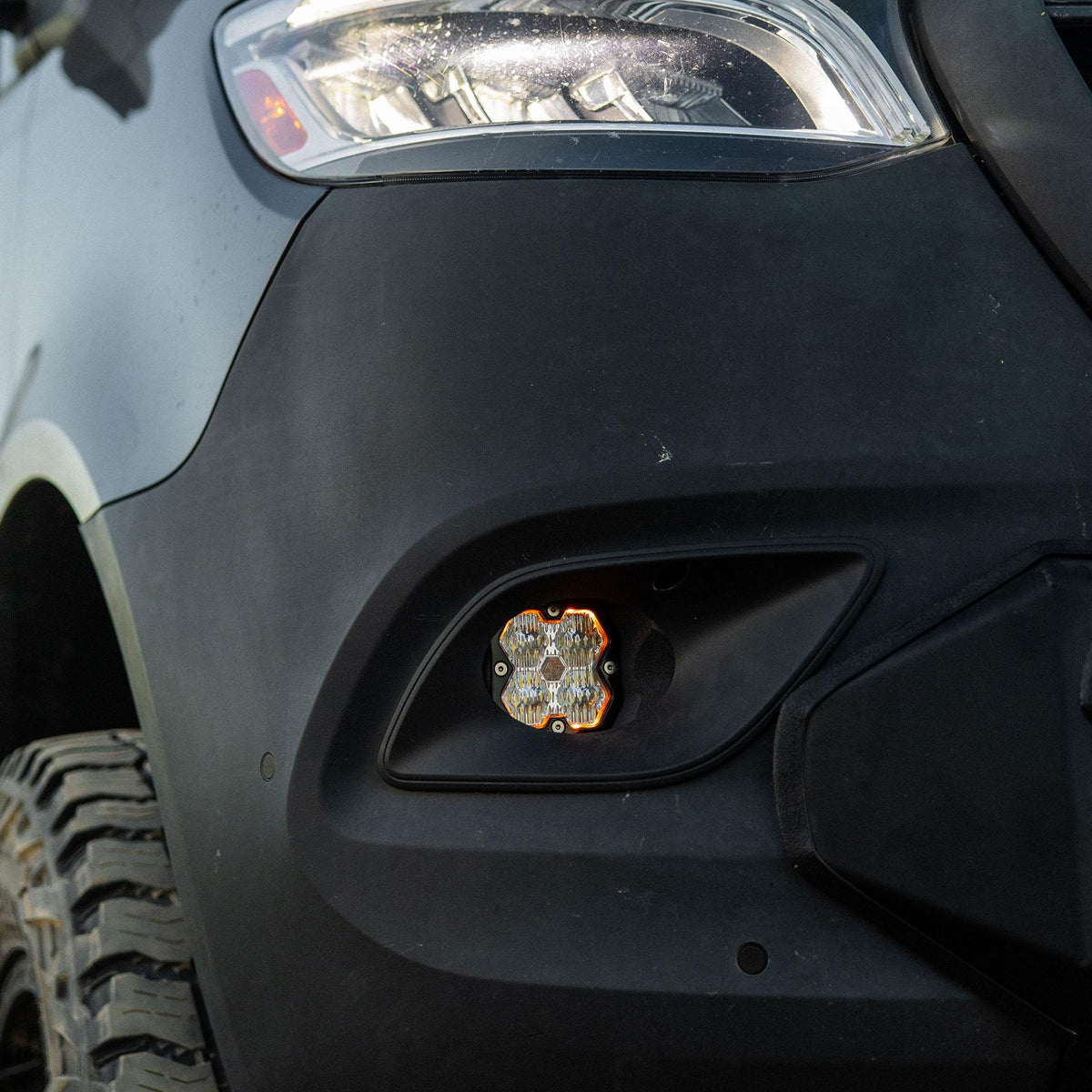

Squadron 2.0 Sport Fog Pocket Light Kit Mercedes 2019-26 Sprinter Van 1500/2500/3500/3500XD

The Baja Designs Squadron 2.0 Sport fog pocket Light Kit for the Mercedes-Benz Sprinter van 1500/2500/3500 gives enthusiasts the ability to explore off the beaten path at any time of night. Our Squadron 2.0 Sport LED lights offer an impressive 3,200 lumens at 30W each - a 26 percent increase in performance over the previous generation - while delivering improved beam control and higher efficiency.

Squadron 2.0 Sport lights include updated lens patterns optimized for the redesigned optics, a durable 4-pin Deutsch connector, and an all-new user-selectable backlight with nine selectable colors to match your Sprinter's style. Fitted with our wide cornering lens pattern to illuminate zones 1 and 2 for a larger spread and blend angle, improving situational awareness, enthusiasts can choose the clear lens option or our amber option to help reduce glare and minimize reflections in dust or fog situations.

Squadron 2.0 Sport Features:

• Refined beam pattern provides greater distance, wider coverage, and reduced light spill
• user-selectable backlight with 9 selectable colors to match any vehicle
• New gasket design improves sealing and protection against the elements
• Standard 4-pin Deutsch connector for improved wiring harness durability

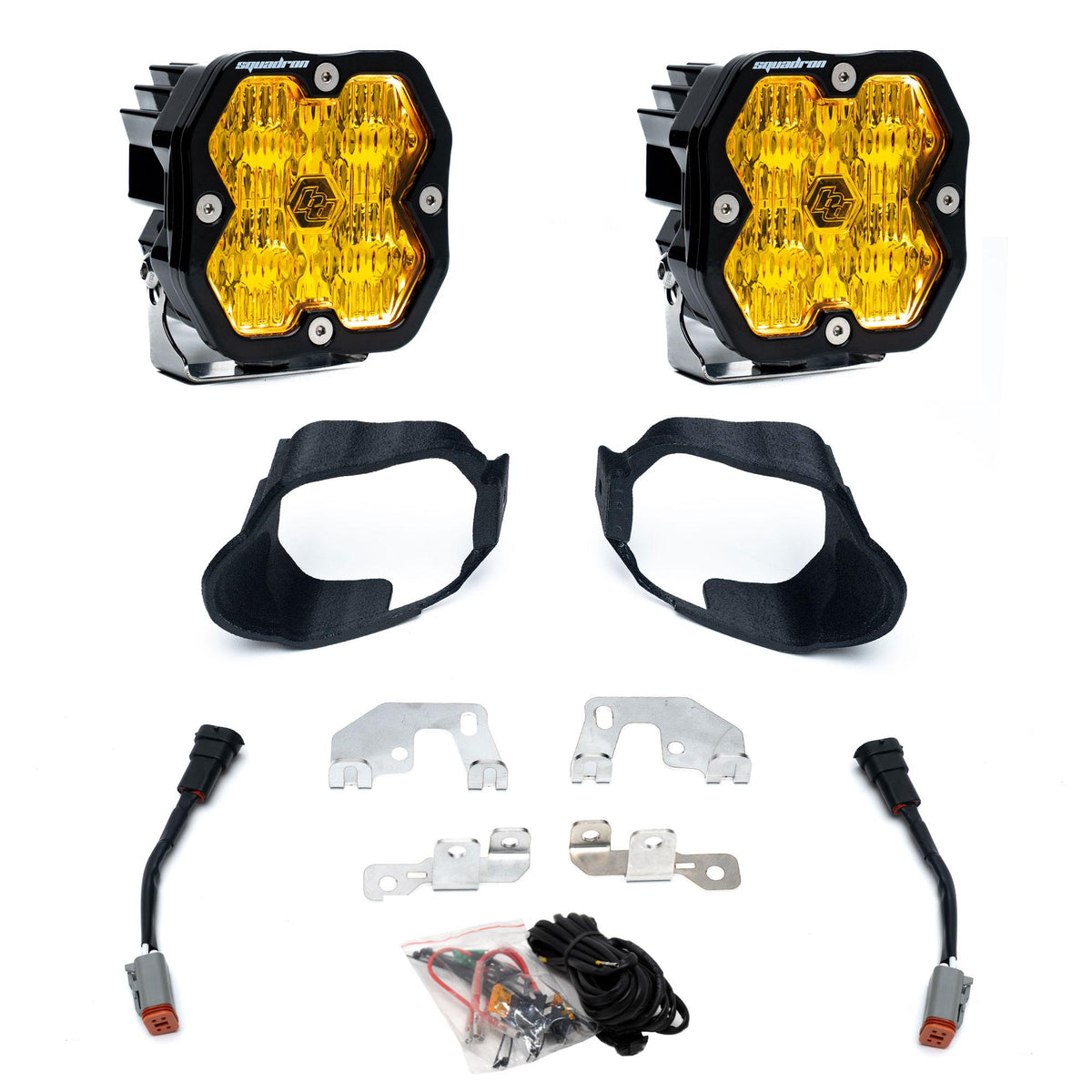

Includes:

• (2x) Squadron 2.0 Sport Wide Cornering — Clear or Amber
• (2x) Fog Pocket Brackets
• (2x) Outboard Bracket
• (2x) Inboard Bracket
• (2x) Wiring Adaptor
• (1x) Backlight Add-On Harness
• All necessary mounting hardware

Squadron 2.0 Sport Specifications (Per Light):

• Lumens: 3,200
• Watts/Amps: 30W/2.2A

The Baja Designs Advantage:

• ClearView — All the Light, Right Where You Need It
• MoistureBlock — Waterproof, Rain Proof, Submersible
• CopperDrive — Safely Driving LEDs at 100 percent
• 5000K Daylight — Less Driver Fatigue, Natural Color

• Specifications:
  • Brightness (Lumens): 3,200 lm
  • Amperage Rating (A): 30W / 2.2A at 13.8V
  • Voltage: Operating White Light Voltage: 10–36V; Operating Backlight Voltage: 11–14V
  • Description: Backlight: 9 Colors
  • Terminal Connector: Deutsch

• Standards & Compliance:
  • Standards/Compliance (Water Resistance): IP69K

• Dimensions:
  • Depth (in.): 3.32 Inch
  • Height (in.): 3.29 Inch
  • Length (in.): 2.84 Inch
